Product Overview

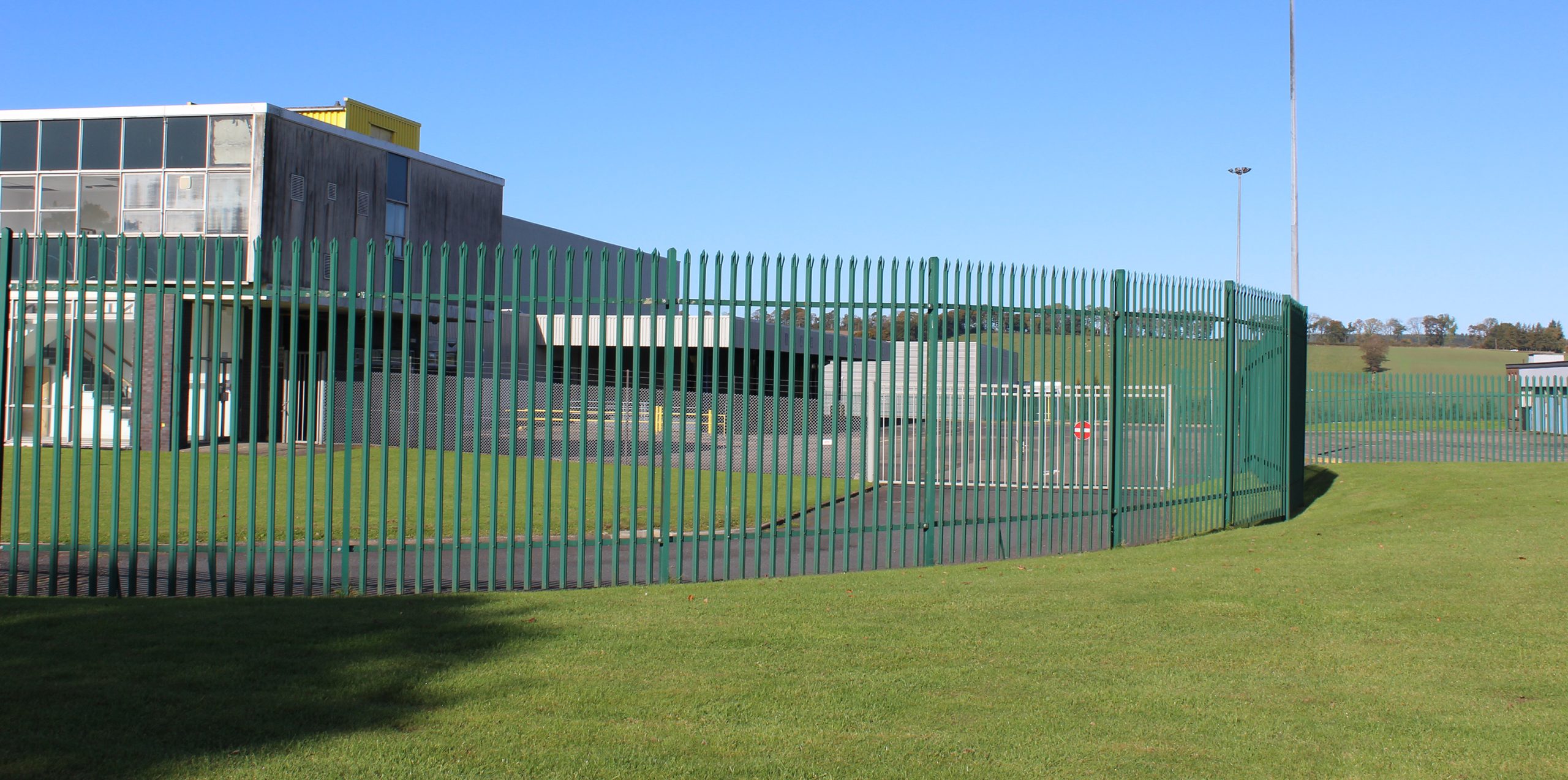

Lochrin Palisade is a robust and resilient deterrent against vandalism and crime. Our palisade fencing allows you to secure the perimeter of your site with a strong and durable solution which works as a theft and intrusion deterrent. Designed for permanent installation, Lochrin Palisade security fencing can be installed on level and sloping ground making it the ideal choice for a variety of private, public, and commercial applications.
With general purpose palisade starting at 0.9m high up to 2.1m high, our security purpose palisade fencing is available in a wide range of heights for fencing ranging from 2.4m high up to 3.0m high, with thicker pale profiles available for high security specifications and heights up to 5.0m.
Lochrin Bain manufacture both 'D' and 'W' section palisade fencing, supplied to various specifications including Network Rail, National Grid, Scottish Power and SSE. Our systems are supplied in kit form for ease of installation, with our design allowing the fence to follow the contour of the ground.
Palisade fencing is suitable for a wide range of applications and can be erected on concrete using bolt down anchors and posts or in softer ground with posts set into the earth and reinforced with concrete. All fencing is galvanised to BS EN ISO 1461 or can be powder coated to your choice of RAL colour.
Key Features
- Quick and simple installation
- Panels designed to follow ground contour and rake
- ‘W’ Section pales can be manufactured in 2.5mm and 3mm
- ‘D’ Section pales can be manufactured in 3mm, and 4mm
- Heights of 0.90m to 3.6m

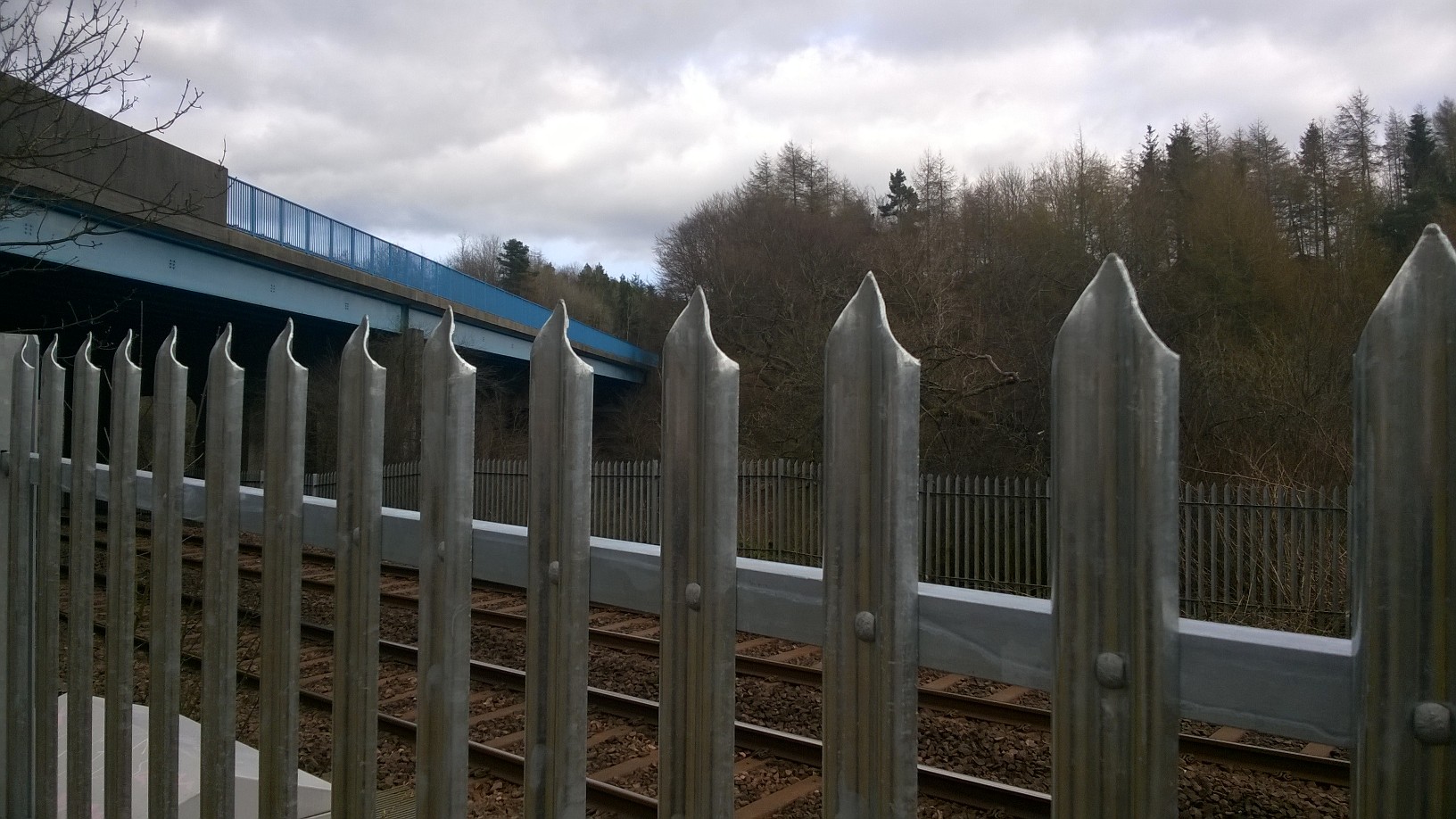

- Suitable for boundary security, schools, allotments, industrial units, railways and utility compounds
- Full specification drawings, Q40 tender documents and technical support available on request
Technical Specification
| 2 / 3 / 4 No. RSA horizontal support rails. |
| 45mm x 45mm x 6mm for standard palisade up to 2.4m High. |
| 50mm x 50mm x 6mm for standard palisade 2.4m High +. |
| 65mm x 50mm x 6mm for High Security Specifications. |
| 75mm x 50mm x 8mm for High Security Specifications. |
| 2mm, 2.5mm & 3mm thick "W section" pales. |
| 3mm or 4mm thick "D" section pales. |
| 17-28 No. pales "W" or "D" section type to a standard 2.75m wide panel. |
| 2 / 3 / 4 / no Fishplate post and rail connectors depending on quantity of horizontal rails. |
| Extended Pales or 2 No intermediate supports for bottom rail. |
| 6/8/10 no M12 x 30mm cup square fixing bolts. |
| Heights – from 0.90m to 4m. |
| Hot Dipped Galvanised to BS EN ISO 1461 or Powder Coated to RAL Colours. |

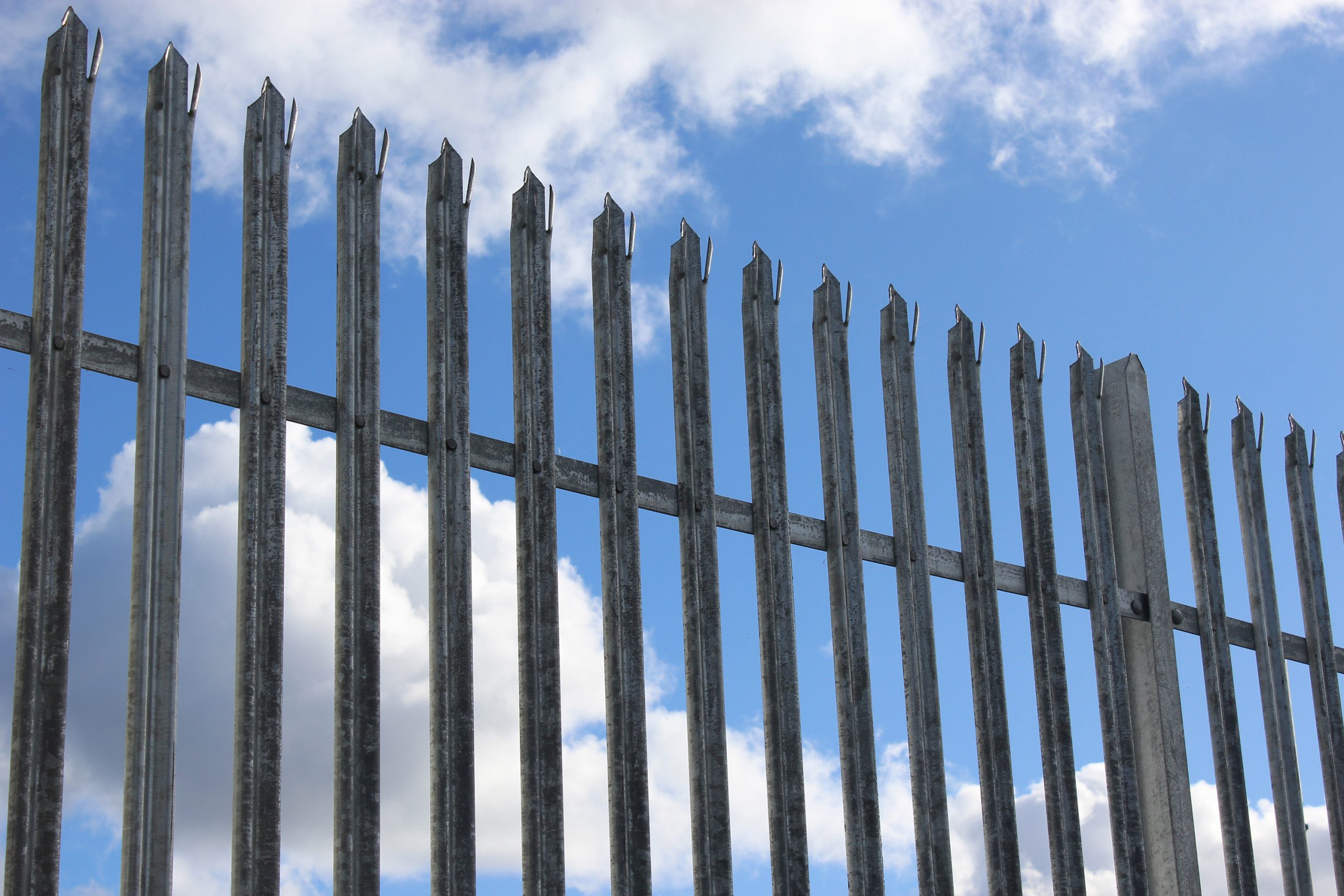

| Pointed, Triple Pointed, Rounded and Rounded & Notched pale heads available (see below.) |
